Engineering Design Consultancy

Engineeringthe Futureof Energy.

Solar, BESS, substations and datacentre power — designed to NEC 2023, NFPA, UL, IEEE and IEC, and built to pass inspection the first time.

View PortfolioOur ServicesFree ToolsGet In Touch

PV array

Solar PV Design

DC/AC layouts, string sizing, yield and grid connection for utility-scale PV.

Solar PV design

Inverter

Electrical Primary Design

Inverter and PCS integration, equipment sizing, cable schedules and earthing.

Primary design

Battery energy storage

BESS Design

Cell-to-container design, PCS, protection, controls and NFPA 855 / UL 9540 layouts.

BESS design

MV/HV transformer

Substation & MV Infrastructure

Step-up transformers, MV switchgear and collector systems — designed as one package.

Substation design

Substation busbar

Substation Design

Primary and secondary substation design up to 275kV, protection & control included.

Substation design

Grid connection

Power System Studies

Load flow, short circuit, protection coordination and grid-code compliance studies.

Power system studies

Datacentre load

Datacentre Power

Utility intake, MV distribution and on-site generation for high-availability loads.

MV / HV infrastructure
Indicative single-line diagram · illustrative values · select a node
300MW+
Generation & Storage Delivered
220kV
Top Design Voltage
20+
Projects Delivered Worldwide
100%
Client Retention Rate
Designed to
  • NEC 2023
  • NFPA 855
  • UL 9540
  • IEEE
  • IEC

Reference Designs

One package. Every system that carries power.

Grid-scale storage and datacentre power are the hardest versions of the problem we solve every day — utility intake, MV switchgear, standby generation, cooling plant and on-site renewables, all coordinated into a single buildable package.

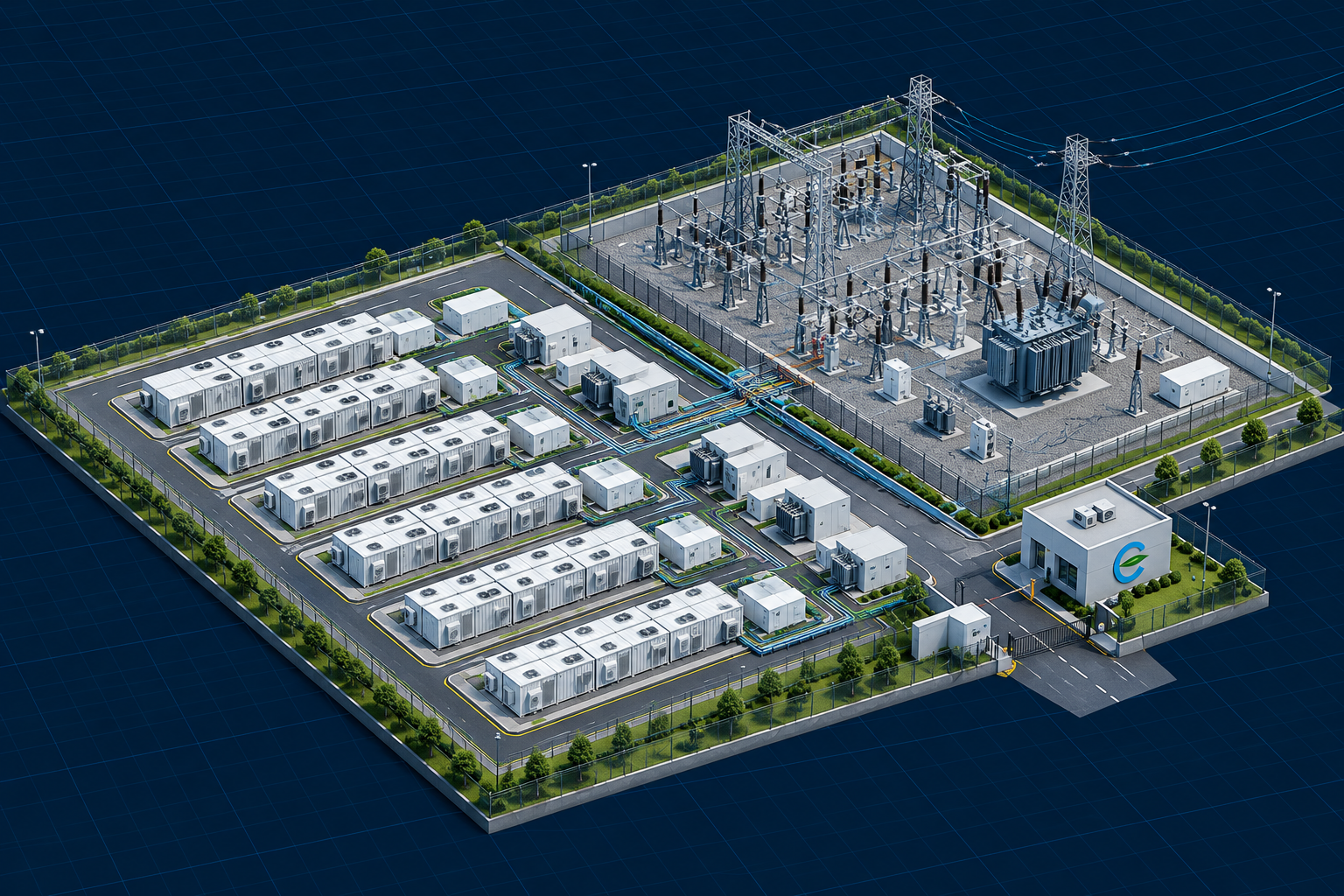

Isometric reference design of a grid-scale battery energy storage facility: rows of BESS containers with inverter and transformer skids, MV cable routes running to an adjacent air-insulated substation with power transformers and transmission takeoff, plus a control building and secured site access.
Grid-Scale BESS — Containers, PCS & SubstationIndicative scheme · not a specific client site

Marker 1

Battery containers

Battery enclosures arranged in blocks, with separation for fire spread and maintenance access.

What we design

  • DC block layout and spacing
  • DC cabling and combiners
  • Auxiliary supplies
  • Fire detection interfaces
  • NFPA 855
  • UL 9540 / 9540A
  • NEC 706
  • IEC 62933

Marker 2

PCS / inverter skids

Power conversion systems turning battery DC into grid-synchronised AC.

What we design

  • PCS sizing and DC/AC interface
  • Protection settings
  • Control and comms wiring
  • UL 1741
  • IEEE 1547
  • NEC 705
  • IEC 62477

Marker 3

MV skid transformers

Step-up transformers and ring main units feeding the MV collector system.

What we design

  • Transformer sizing
  • MV switchgear
  • Earthing and terminations
  • IEEE C57
  • IEC 60076
  • NEC 450

Marker 4

MV cable routes

Buried collector circuits linking the skids to the substation.

What we design

  • Cable sizing and ampacity
  • Routing and crossings
  • Sheath bonding
  • Pulling calculations
  • NEC 311
  • IEC 60287
  • IEEE 575

Marker 5

HV substation

Air-insulated switchyard connecting the plant to the transmission network.

What we design

  • Primary and secondary design
  • Protection and control
  • SCADA
  • Earth grid and lightning protection
  • IEEE 80
  • IEEE 998
  • IEC 61850
  • IEC 61936

Marker 6

Grid transformer

Main power transformer stepping the collector voltage up to transmission level.

What we design

  • Rating and impedance
  • Transformer protection
  • Oil containment and clearances
  • IEEE C57.12
  • IEC 60076

Marker 7

Control building

Protection panels, SCADA, communications and auxiliary AC/DC supplies.

What we design

  • Panel layouts
  • LVAC and DC systems
  • SCADA / RTU architecture
  • Cable schedules
  • IEC 61850
  • NFPA 70
  • IEEE 1613
